Same as HSS, but with added features

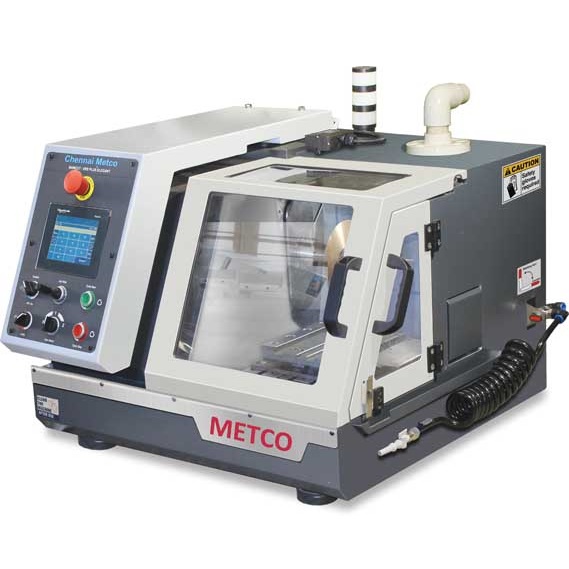

A precision section saw designed for cutting all types of materials with ease
Sliding Door System with two side opening
User Friendly for 3 Axis Operation
Cutting capacity up to 55 mm or 165 x 50mm sample
Wheel Mounting Shaft OD -12.7/25.4 / 31.75mm
Automatic Cut-Off system
Cutting Action -Y Movement Automatic (Longitudinal) 200 mm
40 mm Height Adjustment (Z – Movement) of Diamond wheel /Cut off Wheel allows of easy compensation for Wheel Wearing
Large Movable Cutting T - Slot Table 200mm x 200mm
Up and down movement of cutting wheel as the cutting table moves forward to ensure a small contact area between the cut off wheel and the work piece in order to avoid thermal damage to the work piece
Variable Feed Rates and Cutting Length, Table designed for accommodating variable size & shapes, made of exchangeable stainless steel plates
Feed Rate – 0.01 (or lower) – 3mm/s
Cutting length 0 -190mm in 0.1 steps
Stainless steel flanges will be provided of 75mm dia, 150mm dia, and 200 mm dia
X- Movement – Automatic Positioning Internal Recirculation Coolant System - 10 Ltrs Capacity with magnetic collector & Drain basket for filtering of coolant
Manual Washing facility
LED lamp for cutting chamber
Quick positioning rapid movement with Joystick facility
Wheel should be accommodated 75 mm to 200 mm
2 HP (1.5Kw) 3 Phase Motor
Continuously Variable speed system 300-5000rpm
7" Advance Large Colour graphical Touch Screen
Automatic Electronic control
Intelligent Feed Control for Over Load of the Sample
Standby mode will be provided when machine is not in use for more than 10 min to save cost & power
Pulse Cutting to reduce heat of the hard material Specimen
Auto reverse Facility
Emergency Stop with Safety Door Interlock System
Safety cover will be mechanically locked when the machine starts cutting process and will not open until the cut of wheel has stopped
Fume exhaust port will be provided to exhaust for preventing exposure from harmful and unpleasant fumes
Quick and adjustable Clamping Vise
Four different types of Fixtures (mount chuck, Irregular sample, single saddle chuck and double saddle chuck)
Electrical: 230 V, 50 Hz ( 1 + N + E )
Machine Size: 850mm x 850mm x 600mm (LxBxH)
Machine Color: Door RAL9016, Base RAL 7016
Optional accessories
Laser Line Marking System
Serial Cutting facility up to 50mm
