The MICROMET cut-off machine is ideal for making perfectly reproducible cuts and thinning of precision, with the minimum loss of material and without inducing alterations (micro-cracks, etc.) in metallographic samples.

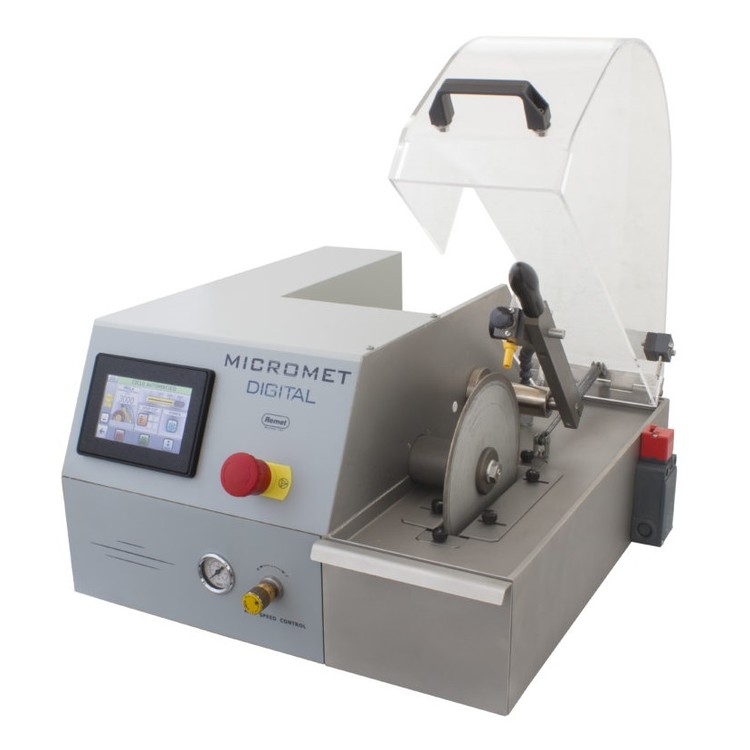

The DIGITAL model allows some additional functions: all cutting operations are controlled by a 5-inch touch-screen panel, allowing the saving of work methods and interface customization. The advancement of the sample controlled by a very sensitive electro-hydraulic system with visualization of the cutting effort.
The continuously adjustable wheel speed (0 – 3000 rpm) and the transversal translation of the sample holder arm by micrometer allow the cutting and thinning of any type of material. Great attention was paid to eliminating problems related to wear and corrosion: the machine body and all the main components are in stainless steel; the internal components are in steel coated with chemical nickel, anticorodal and GHA.
The MICROMET is built in full compliance with the most restrictive safety standards:
| Technical data | Micromet Automatic |
| Max Wheel diameter (mm) | 150 |
| Max Cup Wheel diam. (mm) | 150 |
| Max Cutting diam. (mm) | 50 |
| Motor power (W) | 200 |
| Spindle speed (rpm) | 0 – 3000 |
| Pump capacity (lt/min) | 8 |
| Tank capacity (lt) | 5,5 |
| Max work load (kg) | 3,5 |
| Max side Translation (mm) | 25 |
| Power supply (V) | 220 – 1ph |
| Weight (kg) | 40 |
| Dimensions (mm) LxDxH | 500x600x420 |
*=only on request
