The mounting presses quickly realize perfect inclusions of metallographic samples with any type of thermosetting or thermoplastic resin. The entire work cycle is managed by an easily programmable microprocessor. The wide range of machines makes it possible to fulfill any need of the metallurgical laboratory.

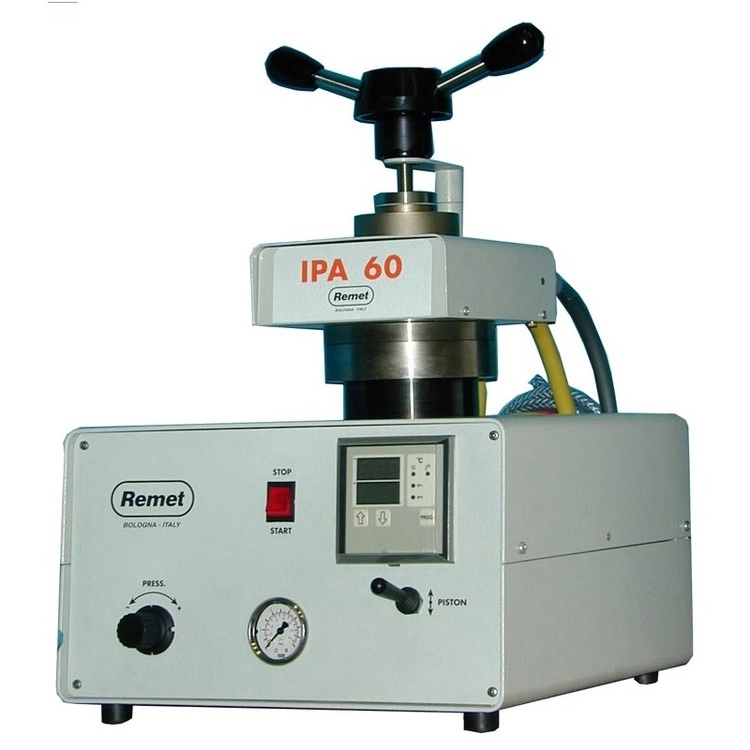

Fully automatic, hydraulically operated, the work cycle is managed by an easily programmable microprocessor. This machine is recommended if very high molding pressures are to be achieved. The press is extremely silent, as the electronic pressure control system stops the hydraulic unit when the set work load is reached. The hydraulic press allows the realization of inclusions of different diameters thanks to a very rapid replacement system of the mounting group.
| Technical data | IPA Hydraulic |
| Mounting diam. (mm) | 25 to 50 |
| Max temperature (°C) | 200 |
| Working time (min) | 1 – 99 |
| Total power (kW) | 0,7 |
| Power supply (V) | 220 Monofase |
| Weight (kg) | 42 |
| Dimensions (mm) LxDxH | 400 x 500 x 510 |
*=only on request
