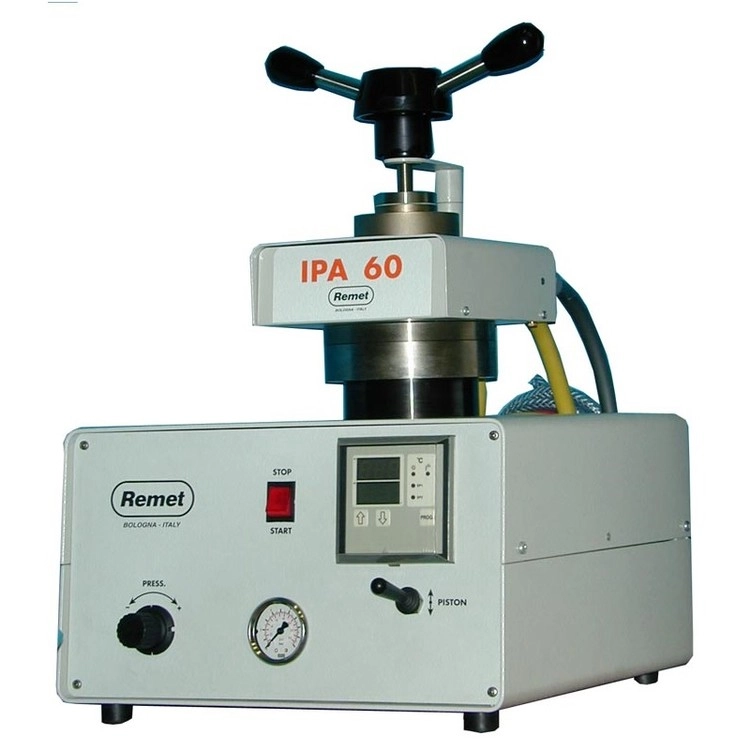

The mounting presses quickly realize perfect inclusions of metallographic samples with any type of thermosetting or thermoplastic resin. The entire work cycle is managed by an easily programmable microprocessor. The wide range of machines makes it possible to fulfill any need of the metallurgical laboratory.
AUTOMATIC PRESSES, pneumatically operated they leave the operator the only task of positioning the sample and pouring the resin.
SEMI-AUTOMATIC PRESSES (SA), manually operated hydraulic units are equipped with a device that automatically restores the working pressure, compensating for the drop due to the resin melting.
INTERCHANGABLE HEAD PRESSES (TI), both automatic and semiautomatic, by means of a rapid head replacement system, they allow incorporation with different diameters using the same machine.
| Technical data | IPA 30 / 40 | IPA SA 30 / 40 | IPA TI | IPA SA TI |
| Mounting Diam. (mm) | 30 / 40 | 30 / 40 | 20 – 65 | 20 – 65 |
| Max Temperature (°C) | 200 | 200 | 200 | 200 |
| Working time (min) | 1 to 99 | 1 to 99 | 1 to 99 | 1 to 99 |
| Power supply (V) | 220 1ph | 220 1ph | 220 1ph | 220 1ph |
| Weight (kg) | 40 / 42 | 35 / 36 | 38 | 43 |
| Dimensions (mm) LxDxH | 400 x 400 x 510 | 400 x 400 x 510 | 225 x 480 x 680 | 225 x 480 x 680 |
*=only on request
